High/Low Frequency Integration Frequency Inverter

High/Low Frequency Integration Frequency Inverter

  • High/Low Frequency Integration Frequency Inverter

Features:

Analog input: One analog input terminal AI1, support 0~10V voltage or 0 ~ 20mA current input.
Analog output: One analog output terminal AO, support 0~10V voltage or 0 ~ 20mA current output.
CONTACT NOW E-mail to us
  • Product Detail

SD90H, SD95H is a specialized field of special designed inverter for high frequency applications. Especially it suitable for carved machine, machining center and other load equipment transmission applications.
SD90H/95H series high/low frequency integration frequency inverter feature:
1.Excellent current limiting ability, which can easily cope with the requirements of rapid deceleration.
2.Low frequency high torque, and can control flexible.
3.High frequency operation, current stable and lower noise.
SD90H/95H series high/low frequency integration frequency inverter function advantage:
1.Ordinary, high frequency motor drive can achieve one keypad toggle.
2.Build-in MODBUS communication protocol, providing RS485 bus support(low frequency motor available)
3.It possess VF and vector control mode, and adaptability stronger.

4.Accurate stater resistance self learning not only provide a strong guarantee for vector control, but also convenient the application of debug.

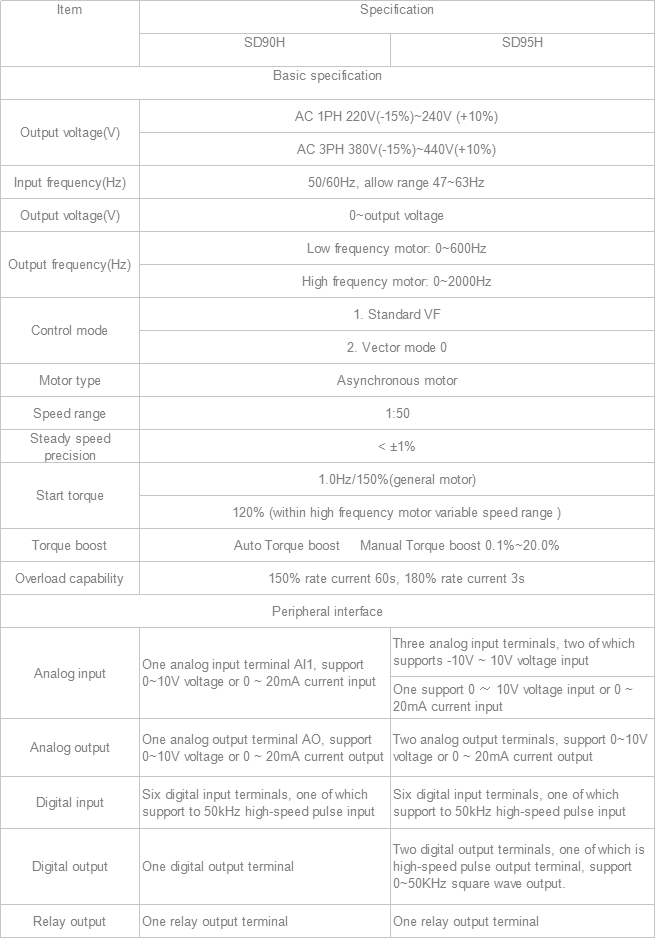

Technical specification:


specification of High/Low Frequency Integration Frequency Inverter


Basic specification
Output voltage(V): AC 1PH 220V(-15%)~240V (+10%), AC 3PH 380V(-15%)~440V(+10%)
Input frequency(Hz): 50/60Hz, allow range 47~63Hz
Output voltage(V): 0~output voltage
Output frequency(Hz): Low frequency motor: 0~600Hz; High frequency motor: 0~2000Hz
Start torque:
1.0Hz/150%(general motor)
120% (within high frequency motor variable speed range )
